Colors Available

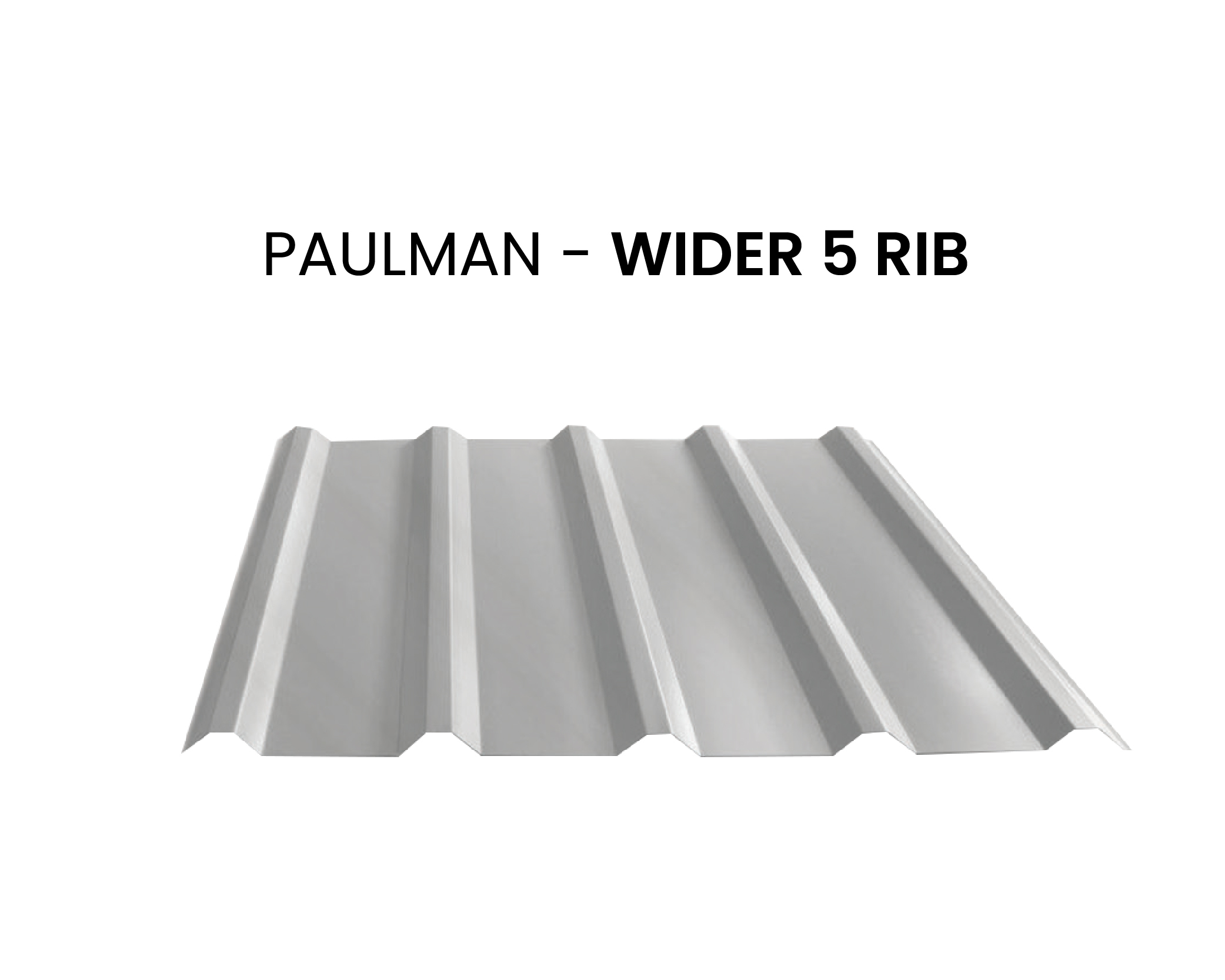

Off White Grey Brick Red Wine Red Blue GreenThese sheets are made with a top-quality Galvalume Alu-zinc coating. With a coil width ranging from 1220mm to 1450mm and a sheet width of 1100mm, these sheets offer excellent coverage of 1000mm. They come in various thicknesses, including 0.30mm, 0.35mm, 0.40mm, 0.45mm, 0.50mm, and 0.60mm, catering to different needs. The height of the rib measures approximately 28mm, providing added strength. They are available in a range of attractive colors, such as Off White, Grey, Brick Red, Wine Red, Blue, and Green, making them suitable for both residential and commercial rooftops. Featuring a 5-layer coating with a top surface paint thickness of 15-22 microns, a bottom surface paint thickness of 5-7 microns, and a zinc coating thickness of 150 GSM, these sheets are built to last. Customizable lengths ensure they fit your requirements perfectly.
Specifications
Specifications | ||
---|---|---|
Material | Galvalume Alu-zinc Coated | |
Coil Width | 1220mm-1450mm | |
Sheet Width | 1100mm,Coverage-1000mm | |
Thickness | 0.30,0.35,0.40,0.45,0.50,0.60mm | |
Length | As per customer requirements | |
Strength | 250 mpa | |
Height of Rib | Approx.28mm | |
Colour | Off White,Grey,Brick Red,Wine Red,Blue,Green | |
Purpose | Residential/commercial Roof Tops |
